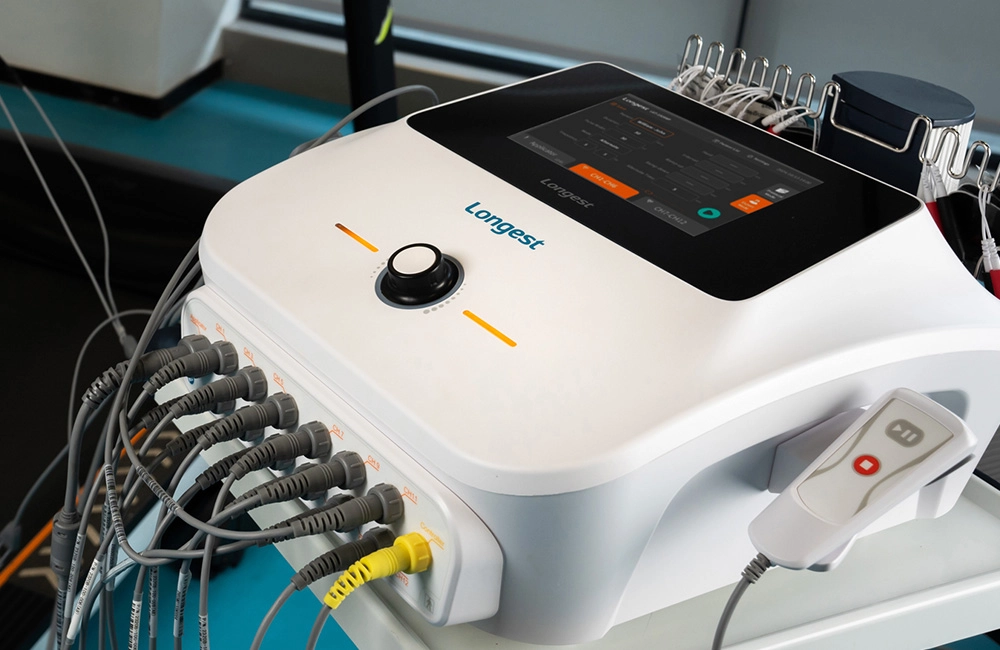

The electrical stimulation device LGT-2320SP is specifically designed for sports medicine professionals to aid in treating and rehabilitating sports-related injuries.

As many as 12 channels for electrode pads allow the treatment of multiple body parts or patients simultaneously. It is also uniquely designed with a channel for pen electrode treatment, which allows the therapists to locate muscle groups for more targeted treatment precisely and helps pinpoint the affected area for more effective treatment.

The 7 preset protocols allow users to select the appropriate preset protocol for their needs without the need to adjust all parameters manually. Each preset protocol comes with pad placement guidance and treatment guidance, making it more friendly to use and learn by beginners.

Dimensions: 450×405×200 mm

Weight: 5.1kg

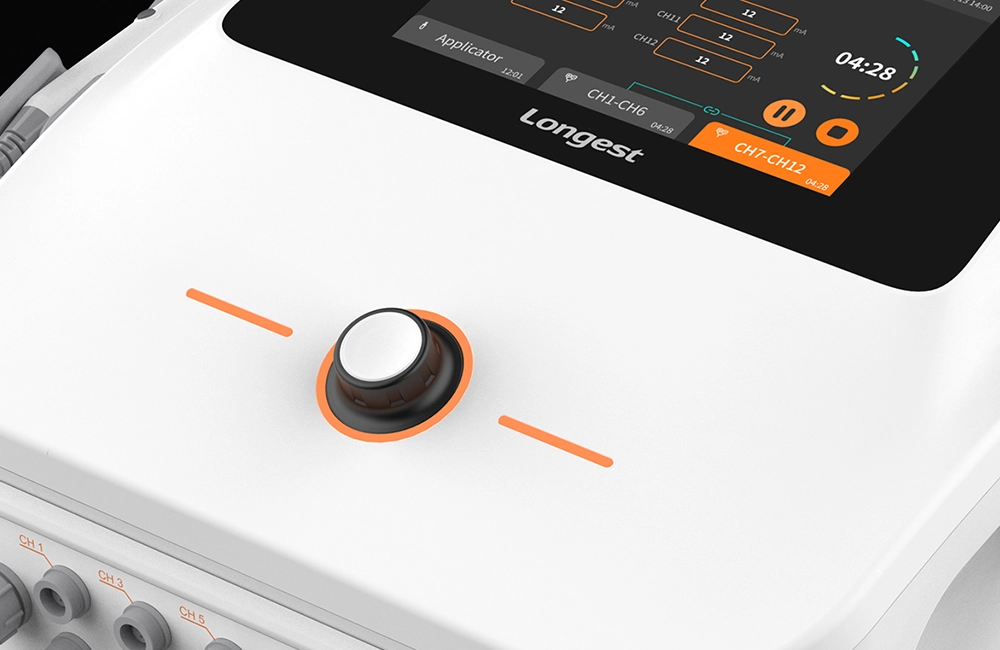

Interface: 7-inch touchscreen

Waveform: Biphasic Symmetrical Square Wave

Pulse Width: Max.400μs

Pulse Frequency: Max. 120Hz

Frequency Modulation: Normal, Alternate, Sweep, Random

Surge Modulation: Ramp-up time, Hold time, Ramp-down time, Interval time

Standard Accessories

• Power Cord*1pc
• Electrode Pad Lead Wire*12pcs

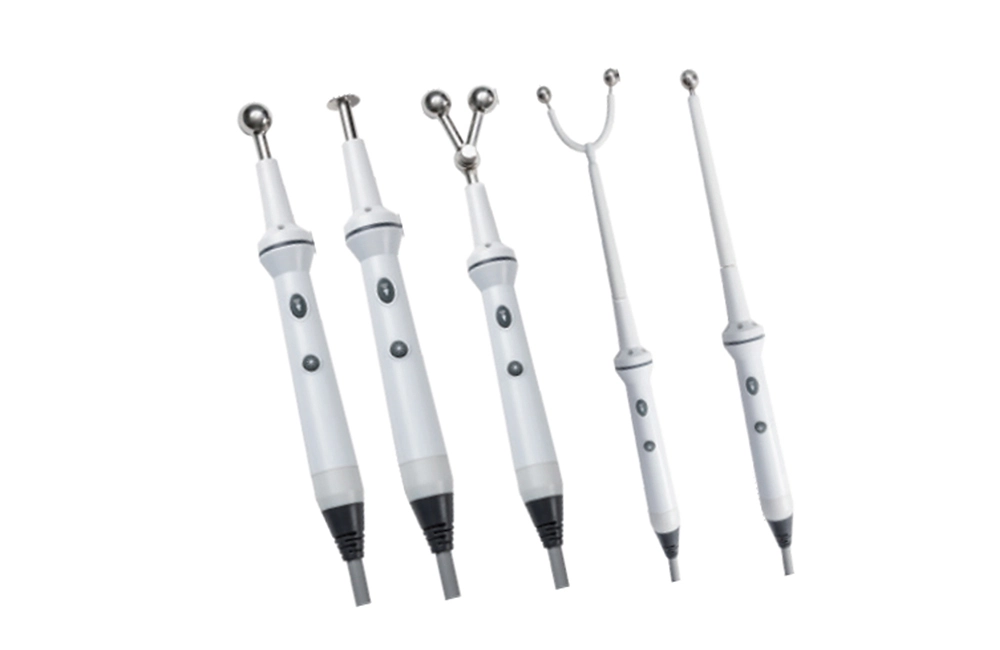

• Pen Electrode Applicator*1pc
• Hand Switch*1pc
• 80*130mm Self-adhesive Electrode*1 pack (4pcs)
• 50*50mm Self-adhesive Electrode*6 packs (4pcs)
• Ball Point Electrode*1pc
• Strap (size S, 55cm)*6pcs
• Strap (size M, 85cm)*6pcs

Optional Accessories

• Dual-Point Ball Electrode
• Plate Electrode
• Spherical Electrode
• Y-shape Electrode
• Electric Glove
• Trolley
• Strap (size L, 125cm)
• Self-adhesive Electrode (40*60cm)
• Self-adhesive Electrode (60*90cm)
